Complete with
NYTTIG TUB 150 Flexible pipe for fan
How to get it
Checking availability...Collect 119 points with
You have 365 days to return your purchase
Want to clear the air swiftly and keep that uniform kitchen look? This built-in extractor works undercover, with a powerful booster, dimmable light, quiet operation (55 dB) – and A+++ energy efficiency.
5 year guarantee
- Booster function
- Dimmable LED light
- With LED light
- Noise Level < 60db (exhaust mode)
Care
Extractor hoodYou will find complete information about the care of this product under the tab Assembly instructions & documents.
Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.
Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.
Assembly instructions
MÅNGSBO Built-in extractor hood506.176.13Advice and care instructions
MÅNGSBO Built-in extractor hood506.176.13MÅNGSBO Built-in extractor hood506.176.13
5-year guarantee, free of charge. Read about the terms in the guarantee brochure.
The dimmable LED lights up your cooking area and lets you set the right mood when you're not cooking, perfect for dining or socialising.
Booster function cranks up extraction for a few minutes to quickly clear cooking fumes – perfect when you're frying and guests are on the way.
Can be installed in two ways, either ducted to the outside or in recirculation mode fitted with charcoal filter.
Built-in extractor hood with 3 different speeds and booster function.
Extraction rate in exhausting mode: 450 m³/h.
Extraction rate in exhausting mode with booster function: 740 m³/h.
Noise level at max. exhaust speed: 55 dB (A).
Extraction rate in re-circulation mode: 250 m³/h.
Extraction rate in re-circulation mode with booster function: 420 m³/h.
Noise level at max. re-circulation speed: 66 dB (A).
Voltage: 230-240V.
Brushless motor ensures quiet operation.
Cabinet, front(s), hinges and knob(s) or handle(s) sold separately.
For recirculation installation: to be completed with charcoal filter NYTTIG filter 500.
For installation to a valve: to be completed with NYTTIG tube 150 flexible pipe for extractor hood.
Note that the noise level may increase or decrease depending on how the extractor hood is installed. See assembly instructions for more details.
Developed to fit into METOD kitchen system.
You will find complete information about the installation and use of this product under the tab Assembly instructions & documents.
Power supply cable with plug included. Installation to be carried out by a qualified installer.
1 dishwasher-safe grease filter included; effectively absorbs smell of cooking, easy to remove for cleaning.
Flexible pipe for fan and charcoal filter sold separately.
Care
Extractor hoodYou will find complete information about the care of this product under the tab Assembly instructions & documents.
Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.
Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.
- WARNING! Falling hazard – to reduce the risk of this product falling down, it must be securely anchored. Use suitable screws and plugs for your home. If you are uncertain, seek professional advice.This product bears the CE mark and the RCM mark.
Assembly instructions
MÅNGSBO Built-in extractor hood506.176.13Advice and care instructions
MÅNGSBO Built-in extractor hood506.176.13MÅNGSBO Built-in extractor hood506.176.13

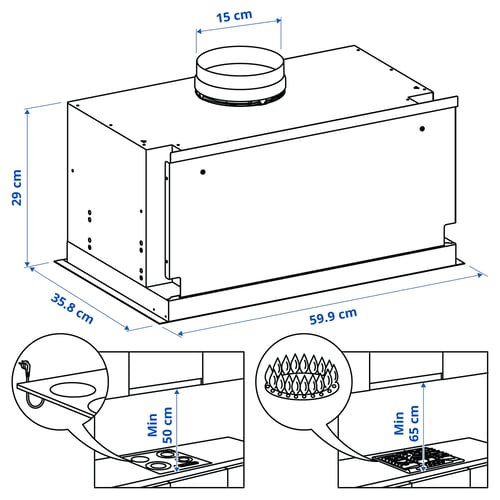

- 506.176.13
1 × MÅNGSBO
Built-in extractor hood- Width: 43 cm
- Height: 43 cm
- Length: 64 cm
- Weight: 11.60 kg
Related products
Explore more options
Recommended for you
Function solution
Is your extractor hood working at its best?
A greasy filter can slow things down. When clogged, it’s less effective at removing smoke, cooking fats and odours. It can even increase fire risk. A quick clean every 2-3 months (or more often if you’re a fan of frying) keeps it running smoothly – and your kitchen smelling fresh. All IKEA extractor hoods have removable, dishwasher-safe grease filters. Prefer to wash by hand? Just use warm water and a little washing-up liquid. Let the filters air dry, then pop them back in!
Quality
Sensitive to noise or have an open-plan home?
For extractor hoods, a noise level below 60 dB is considered low – roughly equivalent to a normal conversation between two people. We measure the noise level of our hoods at max speed, making it easier to compare different models. Note that sound levels decrease at lower speeds, and recirculating hoods are typically louder than those vented outdoors. Noise may also increase if the ducting is long or has several bends, as the air has to work harder to pass through the system.
